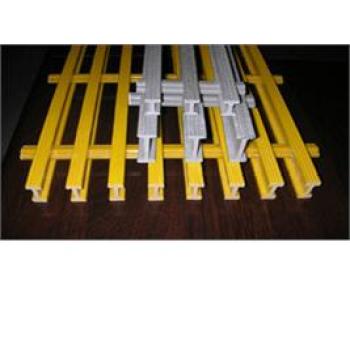

WANT FRP pultruded gratings are fabricated with high quality ''I'' shape profiles as bearing bars, FRP rods and FRP tubes etc as rails which are connected with adhesive or bolt for stabilization.


The Features of WANT FRP gratings

Corrosion Resistant, Light Weight& High Strength, Fire Retardant, Non-Conductive & Non-Sparking, Anti-Skid, anti-aging and anti- fatigue. Easy Installation, Low Maintenance, Adjustable size, Good-appearance etc. It can be fabricated according to different specifications and sizes required by the customers. WANT FRP gratings are widely used for structural material, flooring, ditch cover, platform, warships deck, stairs, and walkway etc.


Data of WANT Pultruded Gratings



Type

Thickness
(in or mm)

Bar Width(mm)

Open Space(mm)

Open Area(%)

Appro. Wt.(kg/m2)

1.5"I-6000

1.5"

15

23

60

18

1.5"I-5000

1.5"

15

15

50

21.5

1.5"I-4000

1.5"

15

10

40

25

1.0"I-6000

1.0"

15

23

60

12

1.0"I-5000

1.0"

15

15

50

14

58I-5000

58mm

15

15

50

24.5

58I-6000

58mm

15

23

60

20



Remarks
WPG,WPG1.5"I-50001.538.1mm,,50%.WPG designation gives the bar size and shape and the percentage of open area. For example: WPG1.5"I-5000 means 1.5" I-bar spaced to give an 50% open area.
